SKU:

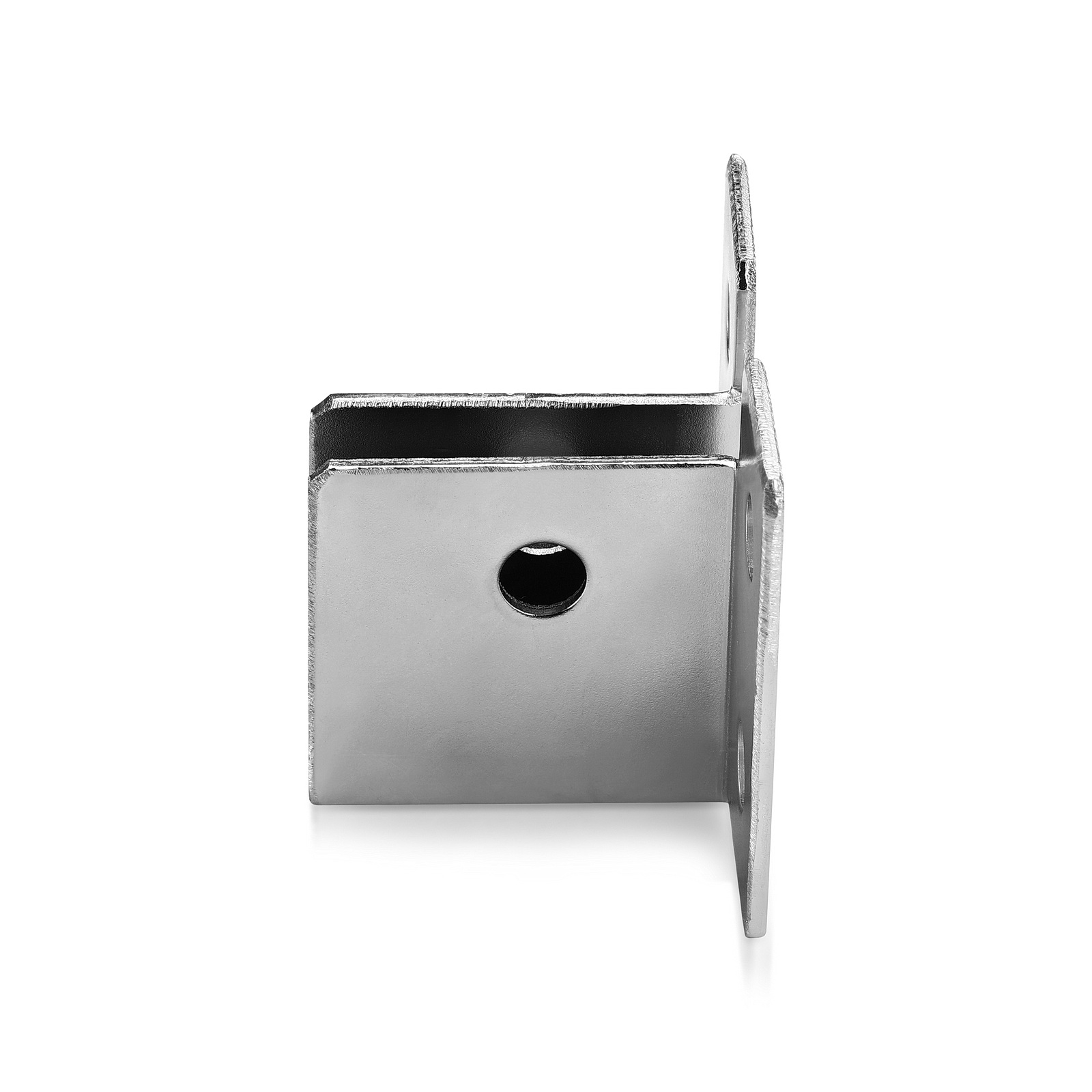

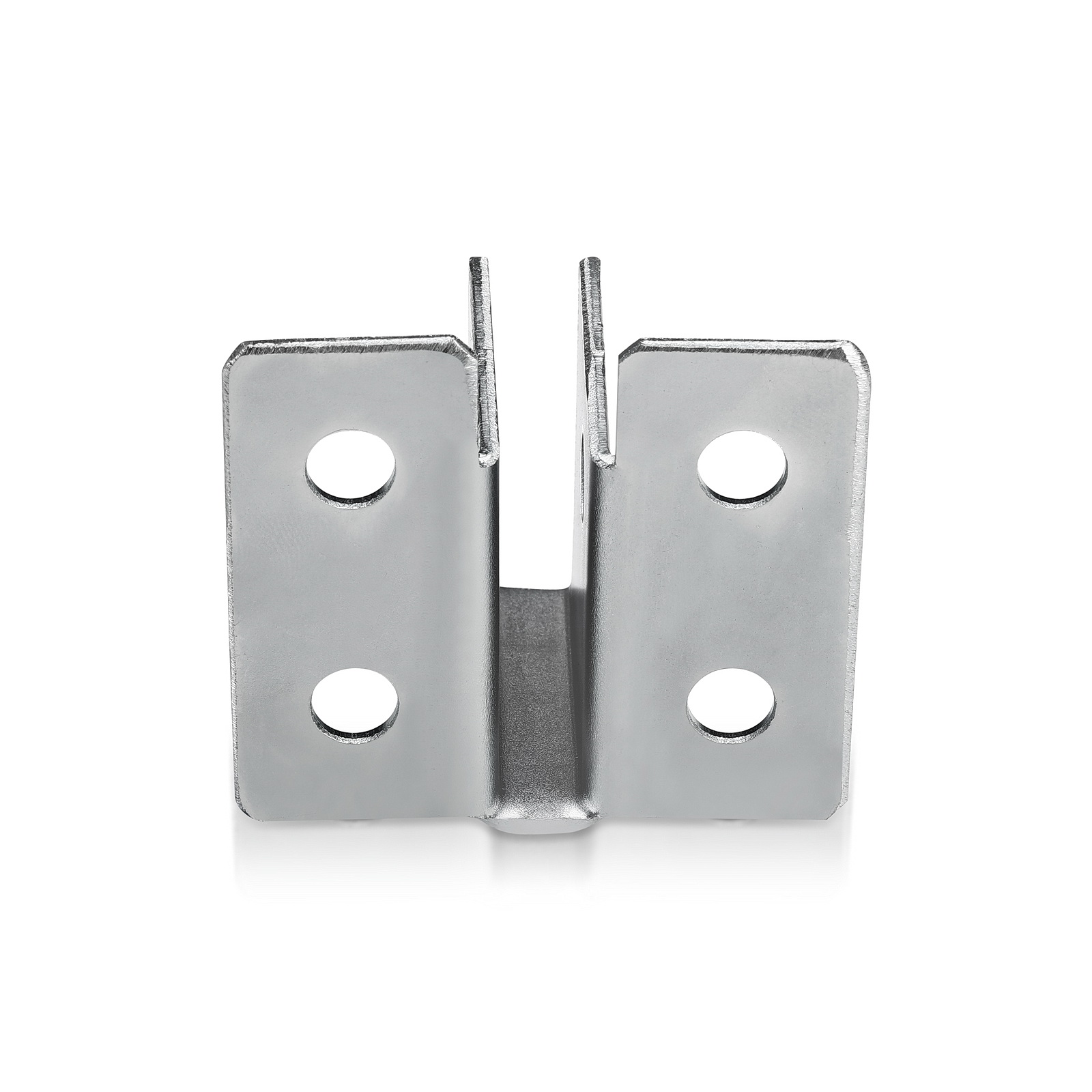

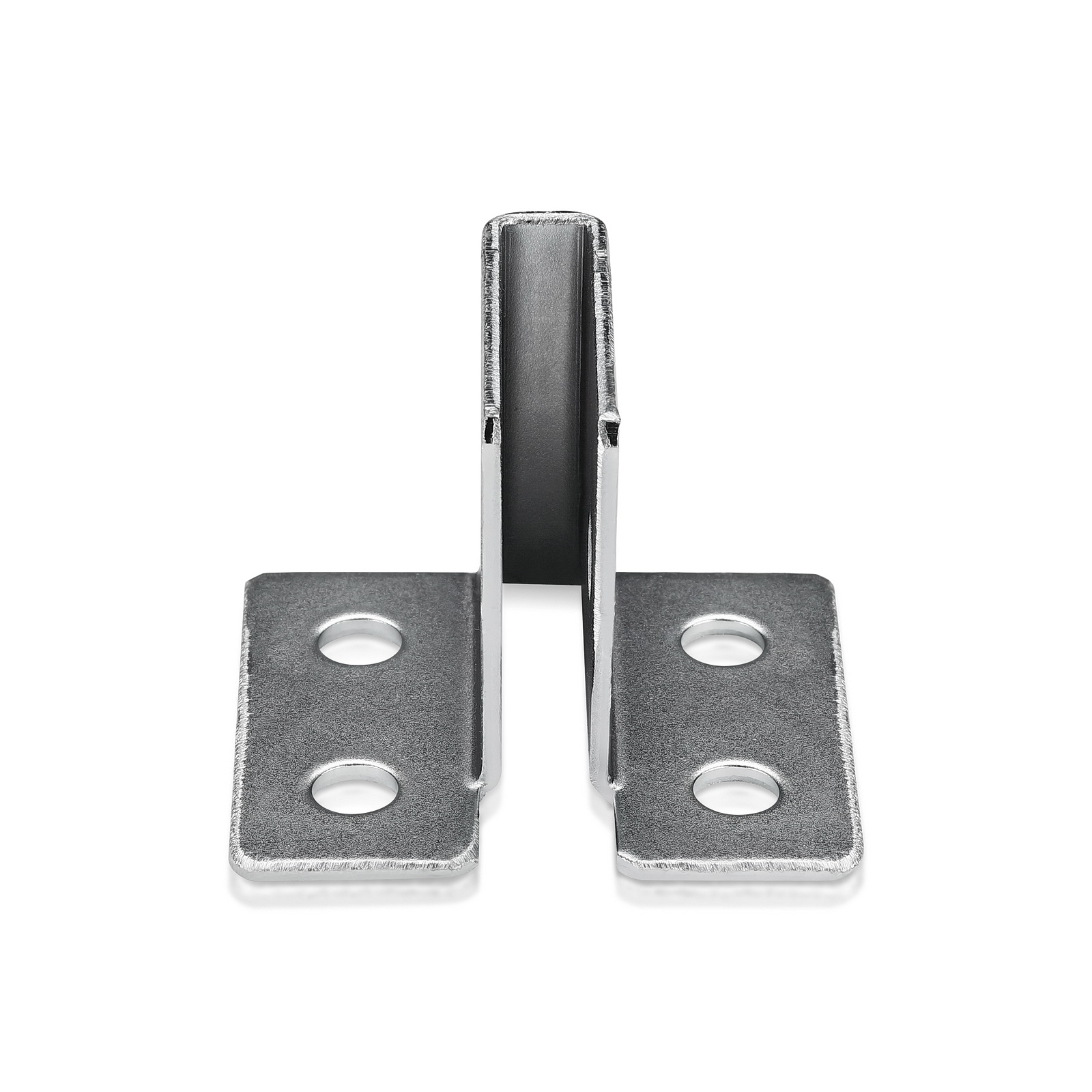

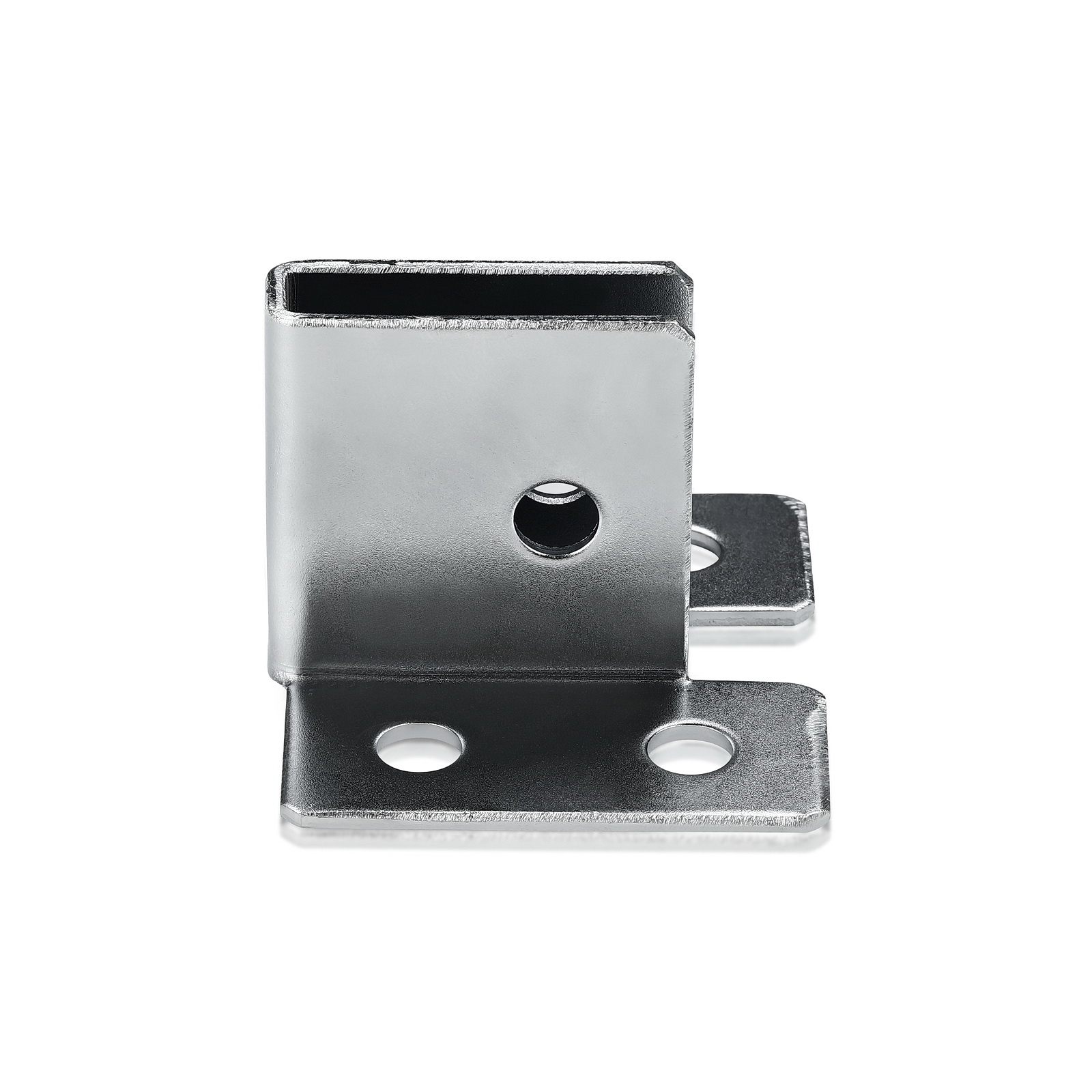

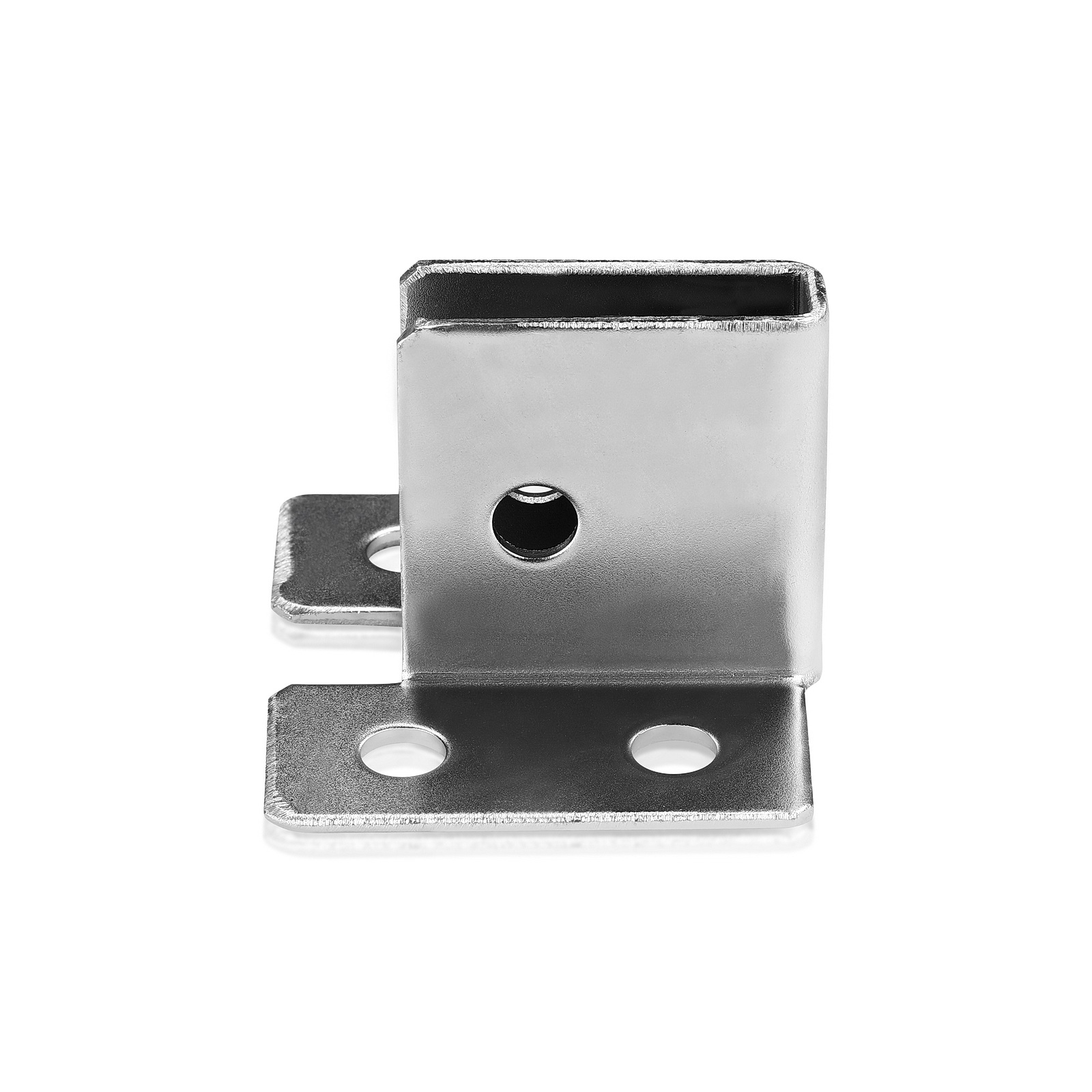

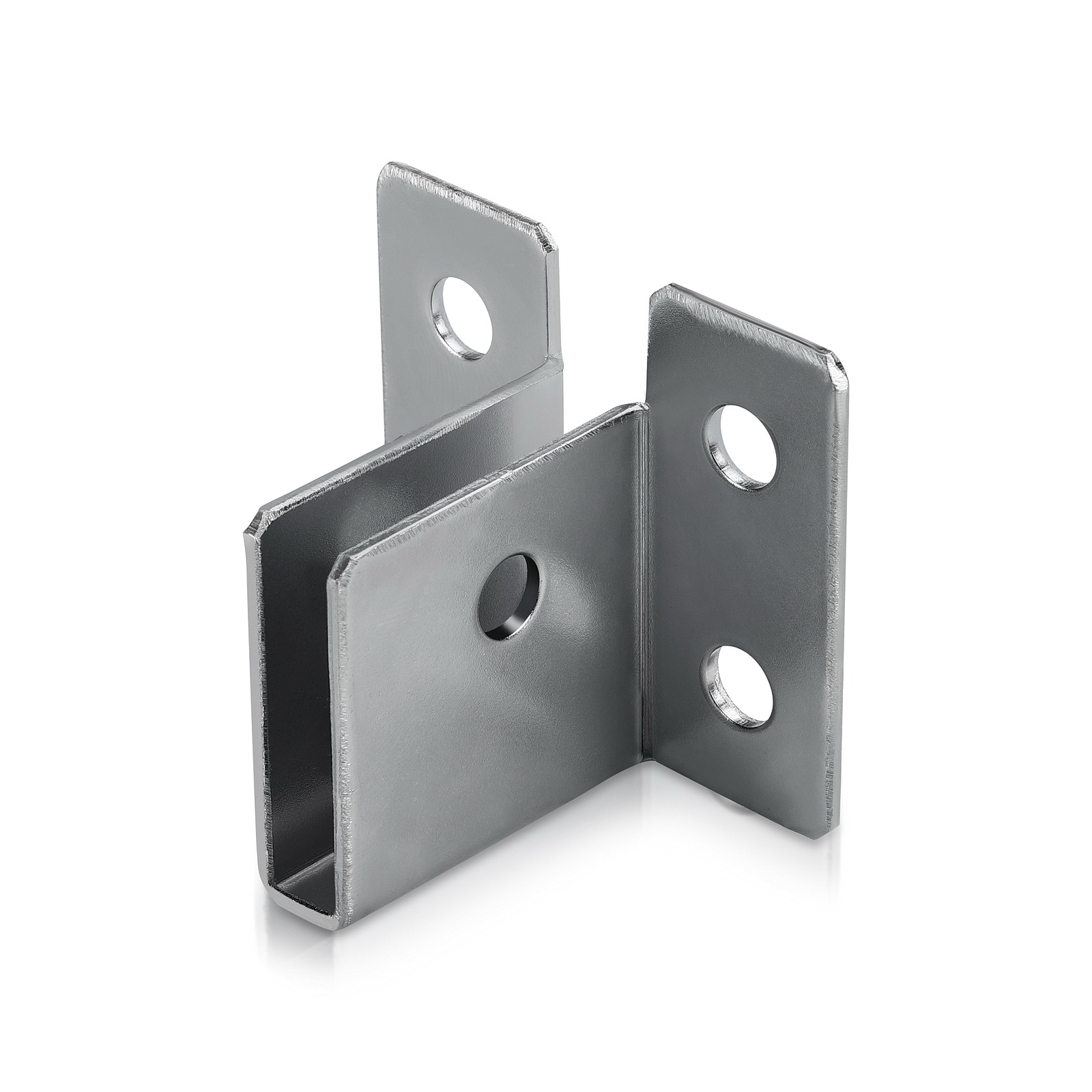

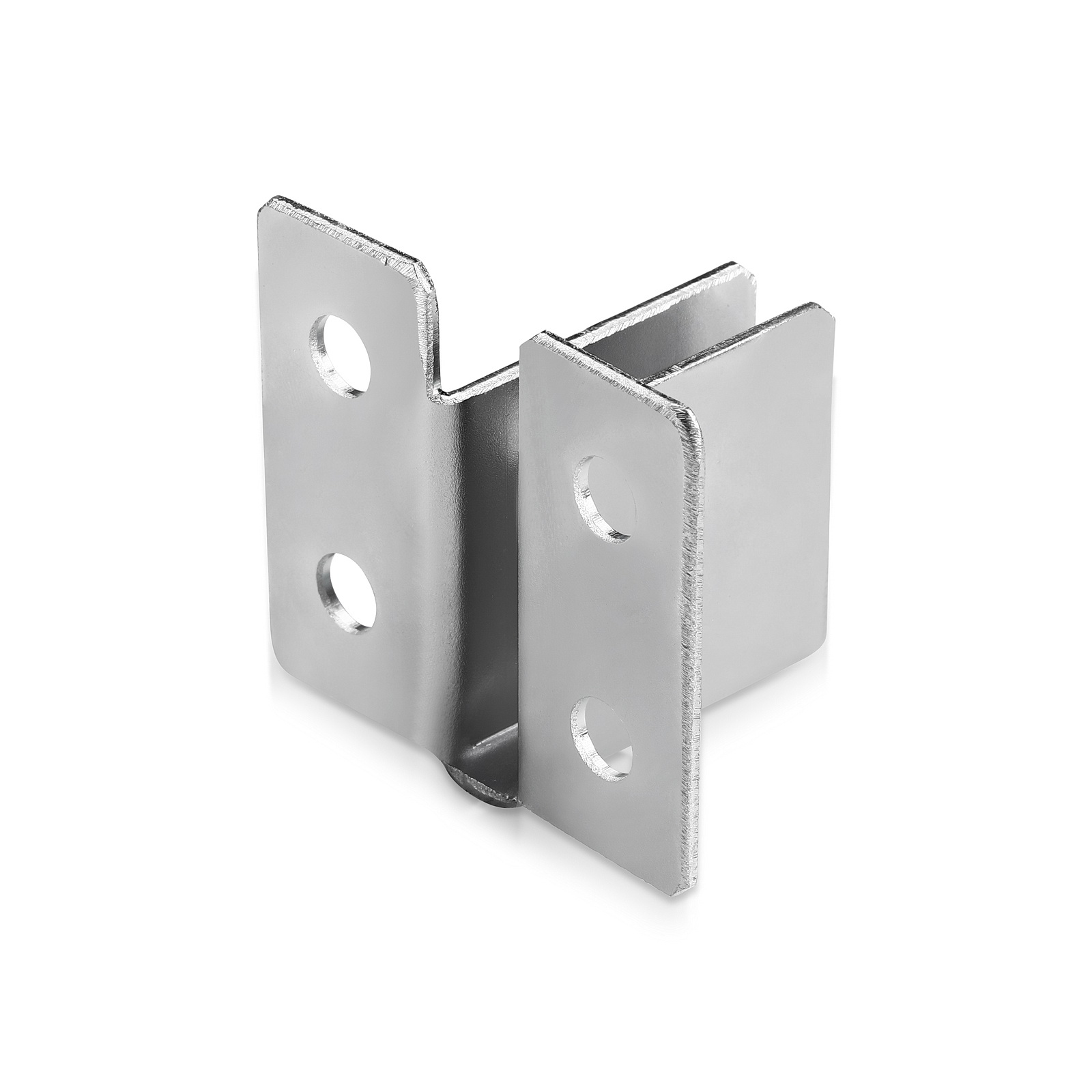

UB025Z Sooper ''U'' Brackets for Solid Sign Substrate Mounting - for 1/4'' Material Corners - Steel Zinc Coated (1 ea.)
Images:
$4.22
Product:
Finish:
Zinc
Material :
Steel
Hole Distance from support edge:
1''
Hole Distance from mount edge:
5/8''
Required Material Hole Size:
5/16''
Thickness Material Accepted:
1/4''
Screw Size for Installation:
#8, #10
Installation:
Drill a 5/16'' hole, 1'' from the corner edge of your material and 5/8'' from other corner edge, WATCH ORIENTATION. Screw the plate on to your surface and mount it using 4 screws. Slide your material over, lining the hole in your material with the pre-drilled hole in the bracket. Slide a bolts through and secure with a nut. Ensure a nice snug fit.
Anchor for Concrete:
ANC2, ANC3
Anchor for Dry Wall:
ANC6, ANC6Z
Installation Hardware:
SACW8, SADW8, TBW82300Z, 2216, ANC2, ANC6Z, ANC6, PH2-2, PH2-3, SETBIT
Tools Required:
Set Bit, Hand Drill
Weight:
1 lb
Description:
This U shaped end bracket utilized on a wall, desktop or ceiling is quite versatile. For use in all sorts of different mounting applications, most of the time used with 1 on each end of your material. Also an optional center bracket can be purchase for extra stability in the center of your sign. Allowing up to 1/4'' thick material and zinc coated for durability.
Drawing:
UB025.pdf
Best Seller:
Website:
Catalog Page:
185
